Password connection to keiomobile2/eduroam

Windows 11

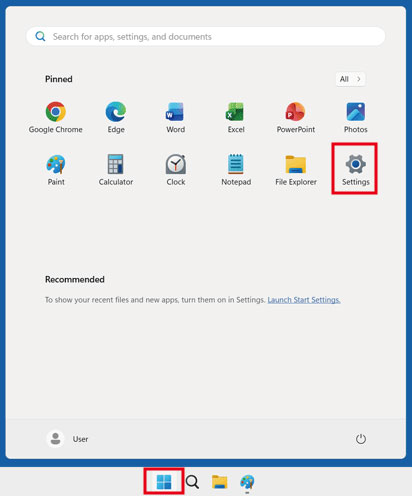

1. Click [Start button] and click [Settings] icon.

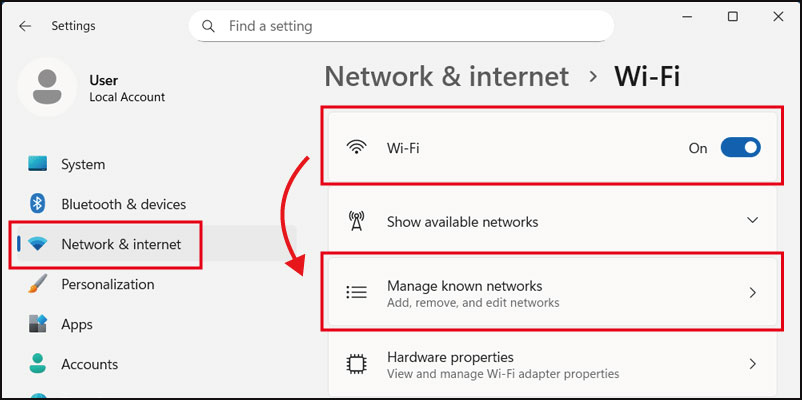

2. [Network & Internet] - Click [Wi-Fi], then click [Manage known networks].

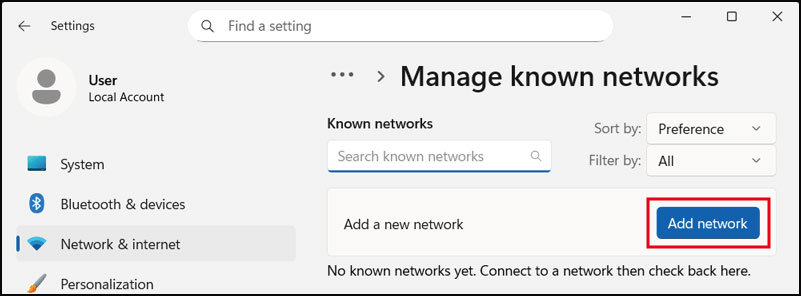

3. Click [Add Network].

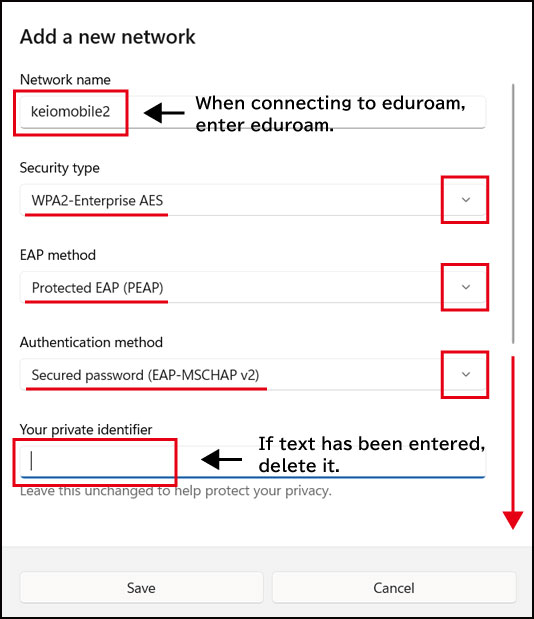

4. To connect to keiomobile2, enter keiomobile2.
   To connect to eduroam, enter eduroam.
   [Security Type] - Select [WPA2-Enterprise AES]
   [EPA method] - Select [Protected EAP (PEAP)]
   [Authentication method] - Select [Secure Password (EAP-MSCHAP v2)]
   [Your private identifier] If text has been entered, delete it.
   After input and selection, scroll down.

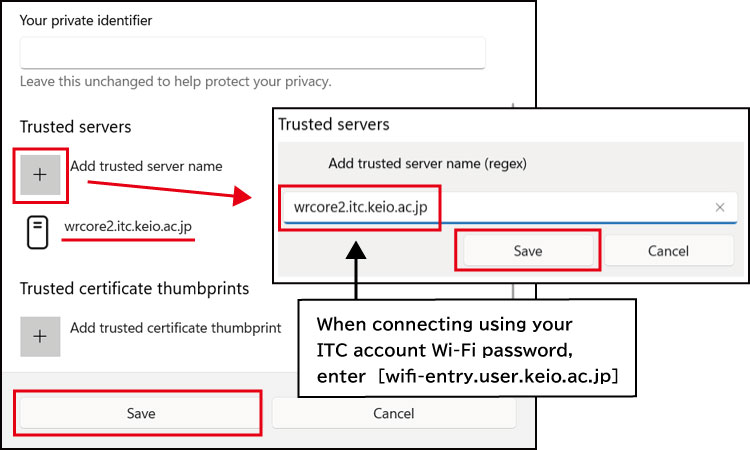

5. Click the [+] to Add trusted server name, enter wrcore2.itc.keio.ac.jp, then click [Save].
   When connecting using the ITC account Wi-Fi password, enter wifi-entry.user.keio.ac.jp.

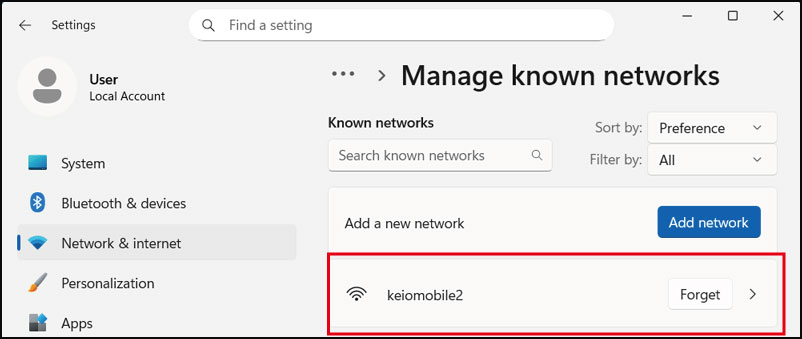

6. Click [keiomobile2].

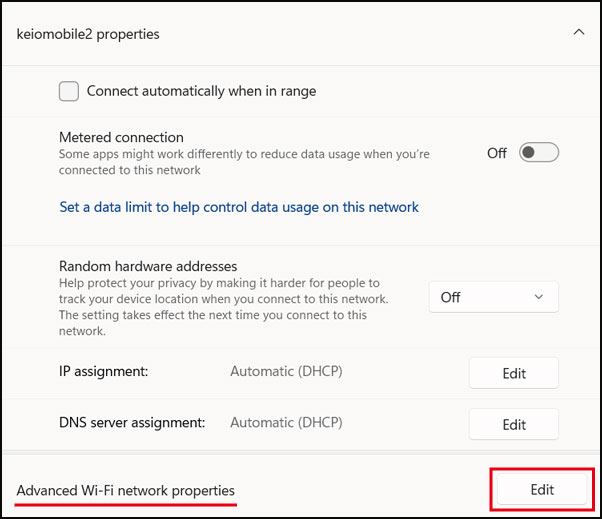

7. Click [Edit] in [Advanced Wi-Fi network properties].

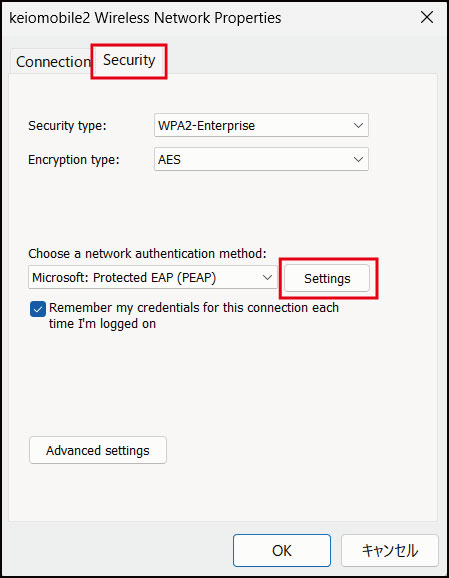

8. Select the [Security] tab and click [Settings].

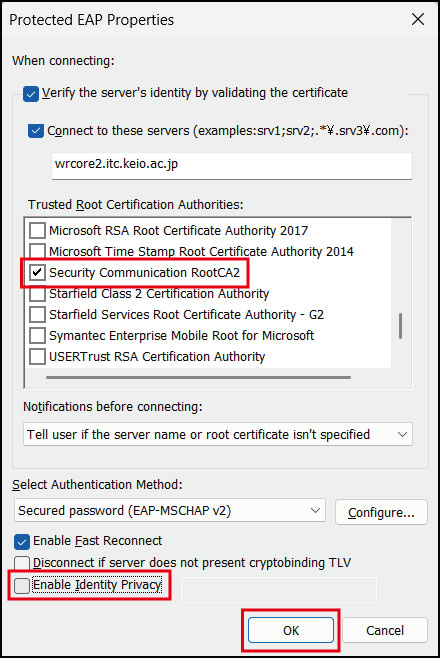

9. Check [Trusted Root Certification Authorities] - [Security Communication RootCA2].
   Uncheck [Enable ID Privacy] and click [OK].

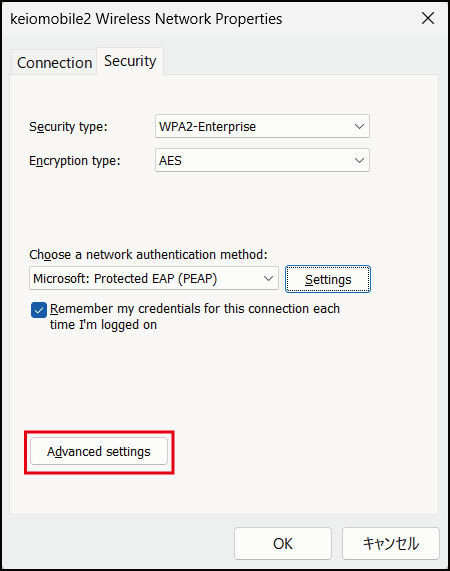

10. Click [Advanced settings].

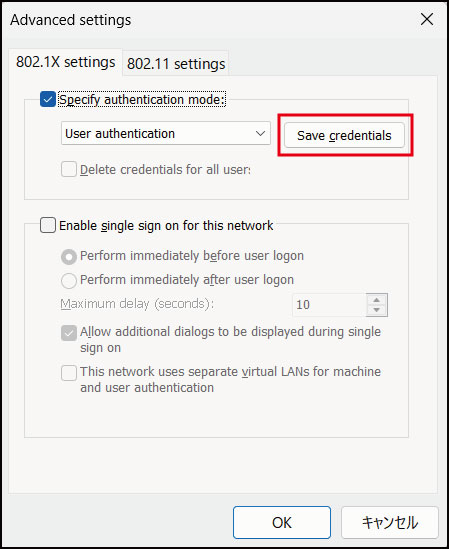

11. Click [Save credentials].

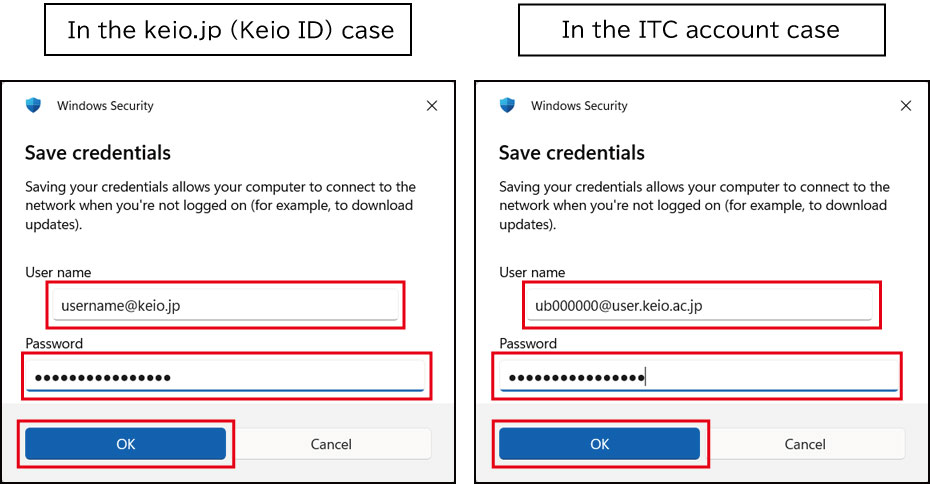

12. In the keio.jp (Keio ID) case, enter “Wi-Fi user name” and “Wi-Fi password”.
    In the case of ITC account, enter, “your ITC account@user.keio.ac.jp” and “Wi-Fi connection password of the ITC account”.

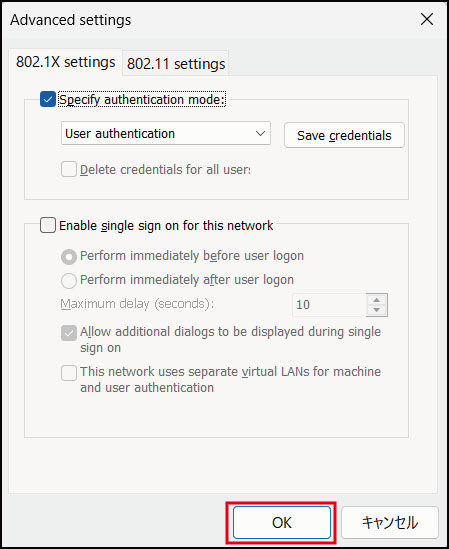

13. Click [OK] in Advanced settings.

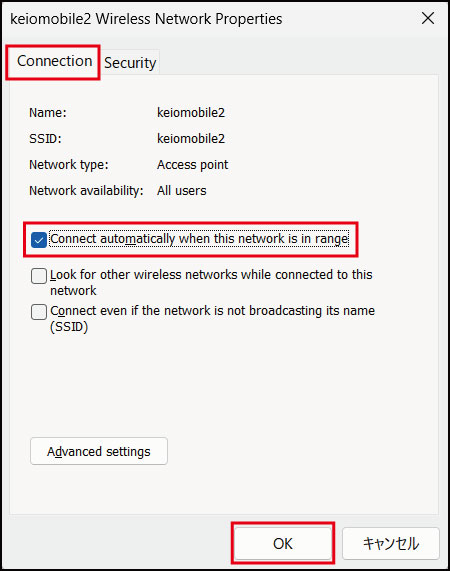

14. Select the [Connection] tab, check the box next to [Connect automatically when this network is in range], and click [OK].

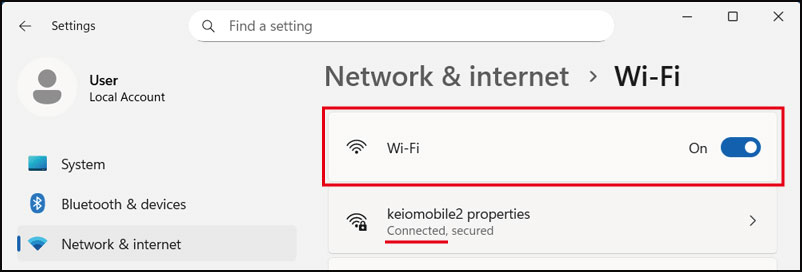

15. [Network & Internet] - Click [Wi-Fi], and confirm that keiomobile2 is displayed as [Connected].





If you cannot connect to [keiomobile2] after setting, delete wireless LAN profile (keiomobile2), then restart your PC and again perform [Network setup].

Procedure for revising wireless LAN connection settings
